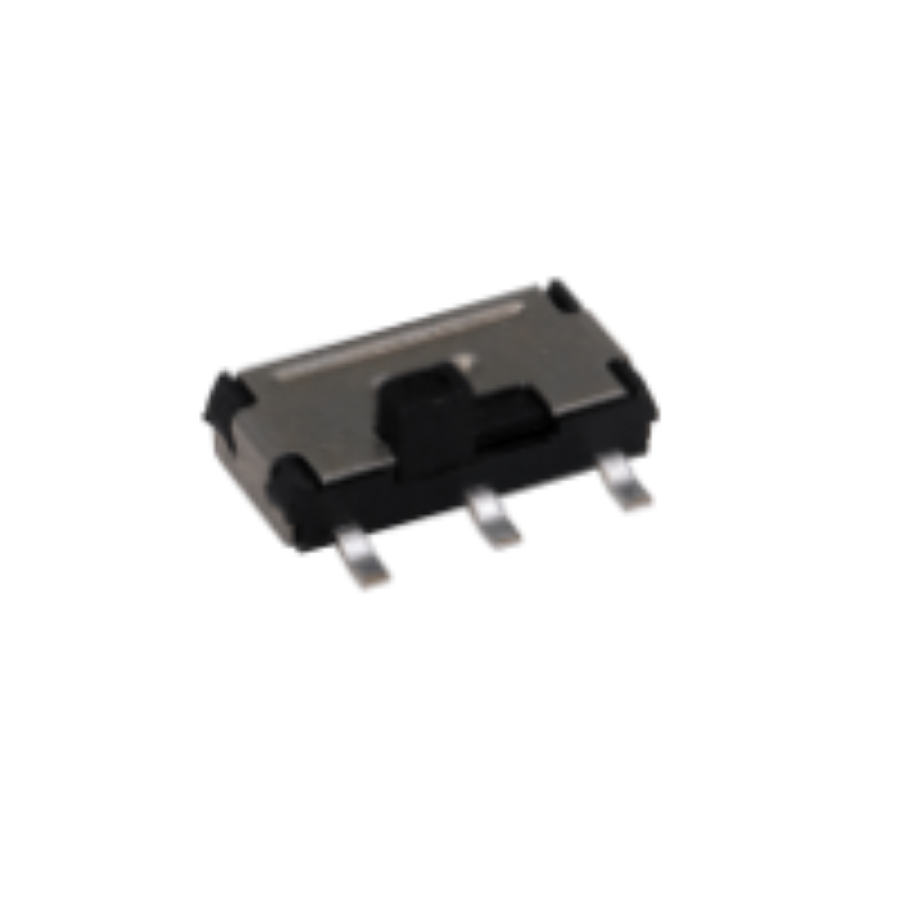

AYZ0202AGRLC
Manufacturer:
C&K Components
Mfr.Part #:
AYZ0202AGRLC
Datasheet:
Description:
Slide Switches SMD/SMT ON - ON SPDT Current Rating:100 mA Standard Round
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 12 V |
| Length | 7.2 mm |
| Termination | Gull Wing |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | -10 °C |
| Voltage Rating (AC) | 20 V |
| Height | 1.7 mm |
| Circuit Type | SPDT |
| Packaging | Reel |
| Depth | 6 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Silver |
| Contact Material(Contact Finish) | Brass |
| Current Rating | 100 mA |
| Max Current Rating | 100 mA |
| Max Voltage Rating (DC) | 12 V |
| Orientation | Vertical |
| Actuator Length | 1 mm |
| Throw Configuration | DPDT |
| Number of Positions | 2 |
| Housing Material | Glass |
| Contact Resistance | 80 mΩ |
| Switch Function | ON - ON |
| Illumination Type | Non-Illuminated |
| Actuator Material | Glass, Glass fibre, Nylon, Polyamide |
| Mechanical Life | 10 kcycles |
| Contact Current Rating | 100 mA |
| Actuator Type | Standard Round |
| Termination Style | PC Pin |
| Life (Cycles) | 10 kCycles |
